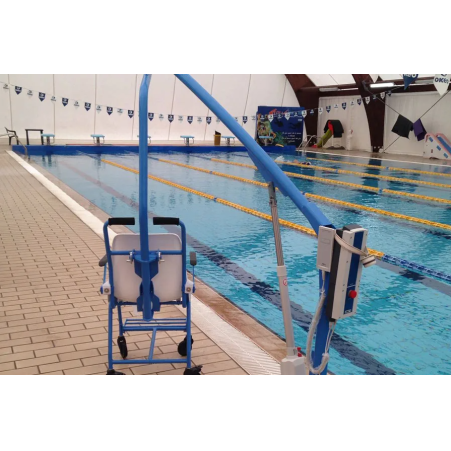

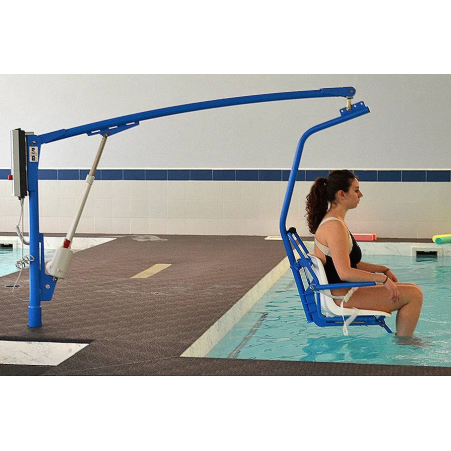

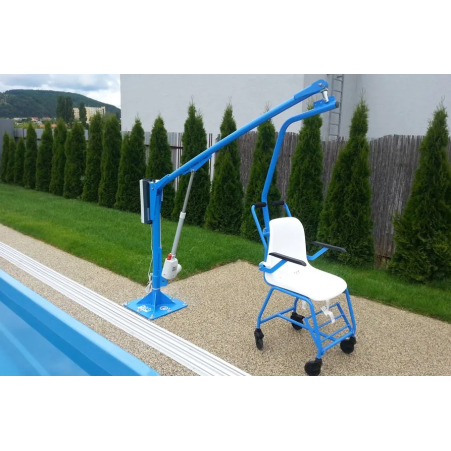

F145B Electric pivoting fixed pool lift with ridgid seat for pool access of disabled people Max load 140kg
The F145B Electric Pivoting Fixed Pool Lift is a robust, high-performance accessibility system designed to provide safe, stable, and comfortable pool access for individuals with disabilities or reduced mobility. Thanks to its electric lifting and pivoting mechanism, the F145B offers smooth and controlled entry into and exit from the water, improving user comfort and reducing operator effort. This version is equipped with a rigid, ergonomically designed seat, providing enhanced stability, secure positioning, and a strong sense of safety during transfers. Manufactured using corrosion-resistant, high-strength materials, the lift is suitable for both indoor and outdoor pool environments — including public pools, leisure centres, rehabilitation facilities, hotels, and private installations. Its fixed anchoring system ensures excellent structural rigidity and long-term operational reliability. With a maximum load capacity of 140 kg, the F145B fully complies with modern accessibility and safety standards.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, configuration, operator training, and both warranty and post-warranty service for all fixed and mobile pool lifts.
Contact us at webshop@bluepulse.ie for technical guidance, product selection support, and on-site accessibility assessment.
- Symbol: 200102014
- Delivery time: up to 14 days
♿ F145 / F145B – Electric Fixed Pool Lift (Semi-Portable System)
Medical Device (EU 2017/745 – Class I – DM 321258/R)
The F145 (high-pole) and F145B (low-pole) are electric fixed pool lifts designed as semi-portable access systems.
Each unit consists of fixed ground components (removable) and a chair with wheeled trolley, which allows safe and comfortable transport of the user from the pool to the changing room and back.
The lift can also be configured with a patented sling system instead of the chair.
The structure supports three anchoring solutions:
• external plate with dowels,
• plate embedded in a 60×60×60 cm concrete block,
• in-ground disappearing socket.
The compact structure, corrosion-resistant materials, and 360° rotation provide safe, certified access for users with reduced mobility.
⚙️ Technical Specifications
-
Maximum capacity: 140 kg
-
Maximum travel: 1350 mm
-
Lifting/lowering time (with load): 20 s
-
Rotation: 360° manual
-
Unit weight: 66 kg
-
Battery: 24 V removable battery
-
Autonomy: ~50 working cycles
🔧 Control & Safety Systems
-
IPX06 spiral-cable push-button panel (up/down control from water)
-
Emergency stop button
-
2-point safety belt (standard)
-
Retractable leg support
-
Adjustable armrests
-
Stainless-steel frame for submerged elements
-
Galvanized + powder-coated structure
-
Removable battery + external charger
🪑 Comfort & Functional Features
-
Wheeled trolley + chair for user transport
-
Optional patented sling system
-
Adjustable armrests for transfer support
-
Retractable leg support for comfortable immersion
-
Compact and semi-portable design
📦 Optional Accessories
-
Different arm lengths
-
Three interchangeable fixing systems
-
Protective cover for electric actuator
📍 Typical Applications
-
Public swimming pools
-
Rehabilitation & hydrotherapy centres
-
Hotels, wellness & spa facilities
-
Private pools requiring a semi-portable, certified lift
-
Facilities needing both pool transfer and changing-room mobility
🏛️ Certifications & Compliance
-
EU Regulation 2017/745 – Medical Devices (Class I) – DM 321258/R
-
Directive 2006/42/EC – Machinery Directive
-
Directive 2004/108/EC – EMC Electromagnetic Compatibility
