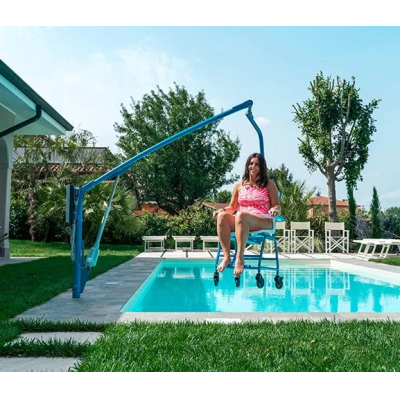

F145 Electric pivoting fixed pool lift with patent lift sling for pool access of disabled people Max load 140kg
The F145 Electric Pivoting Fixed Pool Lift is a high-quality accessibility system designed to provide safe, comfortable, and effortless pool access for individuals with disabilities or reduced mobility. Equipped with an electric lifting and pivoting mechanism, it ensures smooth, controlled movement into and out of the water, allowing secure transfers with minimal operator effort. This version of the F145 features a patented ergonomic lift sling, engineered to provide superior support, stability, and user comfort during pool entry and exit. The sling design enhances safety while simplifying handling for both the user and the caregiver. Constructed from corrosion-resistant, high-strength materials, the F145 is suitable for indoor and outdoor pools, including public pools, hotels, rehabilitation centres, leisure facilities, and private installations. The fixed anchoring system guarantees excellent structural safety and long-term reliability. With a maximum load capacity of 140 kg, it meets modern accessibility and safety standards.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, configuration, operator training, and both warranty and post-warranty service for all fixed and mobile pool lifts.
Contact us at webshop@bluepulse.ie for technical guidance, product selection support, and on-site accessibility assessment.
- Symbol: 200102005
- Delivery time: up to 14 days
♿ F145 / F145B – Electric Fixed Pool Lift (Semi-Portable System)
Medical Device (EU 2017/745 – Class I – DM 321258/R)
The F145 (high-pole) and F145B (low-pole) are electric fixed pool lifts designed as semi-portable access systems.
Each unit consists of fixed ground components (removable) and a chair with wheeled trolley, which allows safe and comfortable transport of the user from the pool to the changing room and back.
The lift can also be configured with a patented sling system instead of the chair.
The structure supports three anchoring solutions:
• external plate with dowels,
• plate embedded in a 60×60×60 cm concrete block,
• in-ground disappearing socket.
The compact structure, corrosion-resistant materials, and 360° rotation provide safe, certified access for users with reduced mobility.
⚙️ Technical Specifications
-
Maximum capacity: 140 kg
-
Maximum travel: 1350 mm
-
Lifting/lowering time (with load): 20 s
-
Rotation: 360° manual
-
Unit weight: 66 kg
-
Battery: 24 V removable battery
-
Autonomy: ~50 working cycles
🔧 Control & Safety Systems
-
IPX06 spiral-cable push-button panel (up/down control from water)
-
Emergency stop button
-
2-point safety belt (standard)
-
Retractable leg support
-
Adjustable armrests
-
Stainless-steel frame for submerged elements
-
Galvanized + powder-coated structure
-
Removable battery + external charger
🪑 Comfort & Functional Features
-
Wheeled trolley + chair for user transport
-
Optional patented sling system
-
Adjustable armrests for transfer support
-
Retractable leg support for comfortable immersion
-
Compact and semi-portable design
📦 Optional Accessories
-
Different arm lengths
-
Three interchangeable fixing systems
-
Protective cover for electric actuator
📍 Typical Applications
-
Public swimming pools
-
Rehabilitation & hydrotherapy centres
-
Hotels, wellness & spa facilities
-
Private pools requiring a semi-portable, certified lift
-
Facilities needing both pool transfer and changing-room mobility
🏛️ Certifications & Compliance
-
EU Regulation 2017/745 – Medical Devices (Class I) – DM 321258/R
-
Directive 2006/42/EC – Machinery Directive
-
Directive 2004/108/EC – EMC Electromagnetic Compatibility
