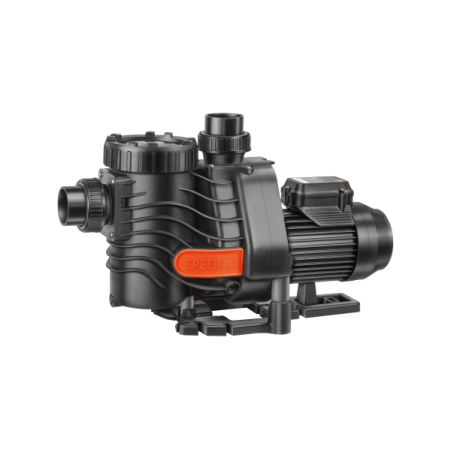

♻️ BADU EasyFit 18 – Single-Phase Pool Circulation Pump (230 V / 50 Hz)

The BADU EasyFit 18 is a self-priming circulation pump designed for medium to large residential swimming pools.
It provides high efficiency, quiet operation, and reliable water circulation for pool filtration systems.
Made with corrosion-resistant materials, the pump is suitable for chlorinated and mild salt-water pools (up to 0.5 % salinity).

✅ Key Features

• Single-phase 230 V / 50 Hz supply – ideal for standard residential electrical systems.

• Self-priming up to 2 m – allows flexible placement above or below the water level.

• Quiet, low-vibration motor with electrical isolation from the pool water.

• Durable corrosion-resistant housing – ensures long service life.

• Transparent strainer lid – easy inspection and maintenance.

• Salt-water compatible up to 0.5 % (≈ 5 g/L).

• Thermal overload protection built into the motor.

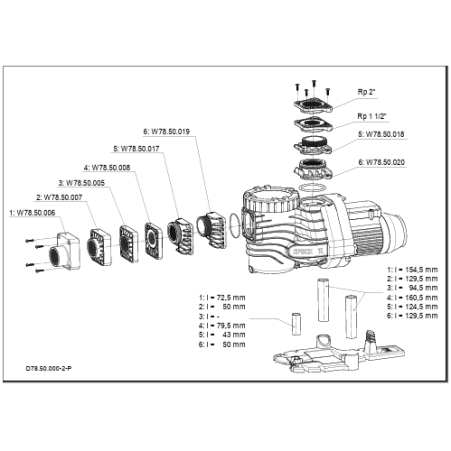

• Modular design for simple installation or retrofit.

⚙️ Technical Specifications

• Model: BADU EasyFit 18

• Power supply: 1~ 230 V / 50 Hz

• Input power (P₁): ≈ 1.10 kW

• Output power (P₂): ≈ 0.75 kW

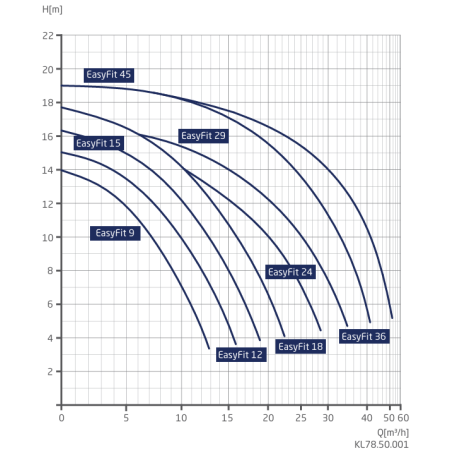

• Flow rate: ≈ 18 m³/h

• Connections: Ø 50 mm suction / Ø 50 mm discharge

• Self-priming lift: up to 2 m

• Max water temperature: 60 °C

• Max salt concentration: 0.5 % (≈ 5 g/L)

• Recommended pool volume: up to ≈ 72 m³ (depending on filtration system)

📍 Typical Applications

• Medium to large residential pools

• In-ground or above-ground pool filtration systems

• Salt-water or chlorinated pools

• Retrofit or pump replacement projects
