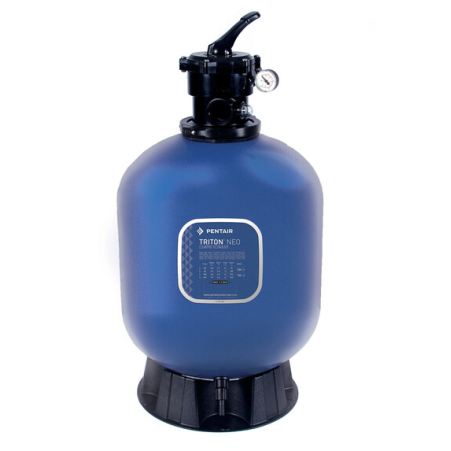

Triton Neo Top Clear Pro, 610mm-24"
The Triton Neo Top Clear Pro 610 mm (24") is a high-efficiency top-mount sand filter designed for small to medium private swimming pools. Featuring ClearPro Technology, it offers superior filtration performance, capturing finer particles than standard sand filters, ensuring crystal-clear water. The top-mount design provides easy access to the multiport valve and internal components, simplifying maintenance and media replacement. Constructed from durable, UV- and corrosion-resistant materials, the Triton Neo Top Clear Pro ensures reliable, long-term operation in demanding pool environments. Its optimized flow distribution system provides efficient circulation while minimizing pressure loss and energy consumption.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, commissioning, media replacement, diagnostics, and both warranty and post-warranty service for all residential and commercial filtration systems.
Contact us at webshop@bluepulse.ie for expert technical advice, guidance on sizing, and support in selecting the ideal filtration system for your pool.
- Symbol: 110102122
- Availability: Available
- Delivery time: up to 14 days
♻️ Triton Neo Top Clear Pro – 610 mm / 24"
Pool Filter
The Triton Neo Top Clear Pro 610 mm (24") is a premium top-mount sand filter engineered for high-performance pool filtration in residential, hotel, and commercial applications.
With its enlarged 610 mm / 24" tank diameter, it provides superior filtration capacity, reduced maintenance, and consistently crystal-clear water quality thanks to Clear Pro internal technology.
Designed for durability, hydraulic efficiency, and long service life, the Triton Neo series is one of the most trusted filtration solutions for medium to large swimming pools.
✅ Key Features
-
Clear Pro Technology – ultra-fine particle capture for enhanced water clarity
-
Top-mount multiport valve – simple operation and easy installation
-
Corrosion-resistant composite tank – UV-stable and long-lasting
-
Optimized sand bed distribution – balanced flow and efficient filtration
-
Large top access lid – simplifies inspection and media replacement
-
Low pressure loss – maximises pump performance and energy efficiency
-
Durable internal collectors – designed for longevity and stable flow
⚙️ Technical Specifications
-
Model: Triton Neo Top Clear Pro
-
Tank diameter: 610 mm / 24"
-
Valve type: Top-mount 6-way multiport valve
-
Filtration media: Silica sand, glass media, or AFM
-
Operating pressure: Standard pool filtration range
-
Connections: Standard union fittings (depending on configuration)
-
Construction: Reinforced corrosion-proof composite tank
-
Maintenance access: Large top lid; bottom drain for easy servicing
📍 Typical Applications
-
Medium and large residential pools
-
Hotel and resort swimming pools
-
Wellness and spa facilities
-
Commercial filtration systems
-
Pools using sand, glass, or AFM media
| Symbol: | 110102122 |
|---|---|
| Weight | 16.3 kg |
| Warranties: | 12 years tank warranty |
| Filter area: | 0.52 m² |
| Connection IN: | 2 in. |
| Connection OUT: | 2 in. |
| Filter capacity at 30m³/h/m²: | 15.6 m³/h |
| Filter capacity at 50m³/h/m² (backwash capacity) | 26 m³/h |
| Gravel: | 25 kg |
| Sand: | 150 kg |
| AFM Grade 1: | 84 kg |
| AFM Grade 2: | 63 kg |
