Perpendicullar Grating - Height 22mm - Width from 150mm to 195mm
Perpendicular Overflow Grating – 22 mm Height
Price: per 1 running metre (1 m)
The Perpendicular Overflow Grating (22 mm height) is designed for use in swimming pool overflow channels, providing effective water collection, safe walking surfaces, and long-term resistance to pool chemicals. Manufactured from high-strength, UV-stabilised polypropylene (PP), it offers excellent durability and non-slip performance, even in high-traffic public pool environments.
This grating is available in widths ranging from 150 mm to 195 mm, making it compatible with a wide range of overflow systems in public and private swimming pools. Its perpendicular structure ensures optimal water flow into the channel while maintaining strong load-bearing capacity and user safety.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, sizing assistance, and both warranty and post-warranty service for pool gratings and overflow systems.
Contact us at webshop@bluepulse.ie for sizing guidance, compatibility checks, and system configuration support.
- Symbol: 06010100
- Delivery time: up to 14 days

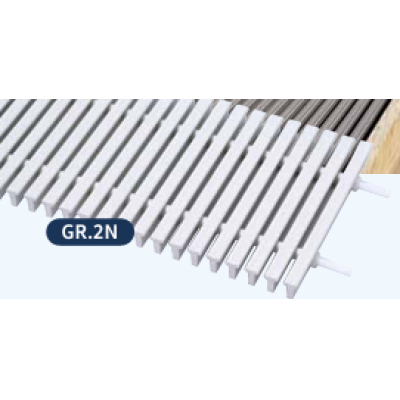

💠Perpendicular Grating – Height 22 mm – Width 150–195 mm
The Perpendicular Overflow Grating (Height 22 mm) is a modular, high-strength pool-edge grating designed for overflow channels in commercial and residential swimming pools.
Its perpendicular rib geometry provides excellent mechanical load resistance, stable barefoot traction, and long-term durability in wet and chlorinated environments.
⚙️ Technical Specifications
-
Type: Perpendicular overflow grating
-
Height: 22 mm
-
Width: Custom-made – from 150 mm to 195 mm (chosen by the customer)
-
Material: PP (polypropylene), UV- and chemical-resistant
-
Structure: Perpendicular rib system for improved load capacity
-
Surface: Slip-resistant, barefoot-safe
-

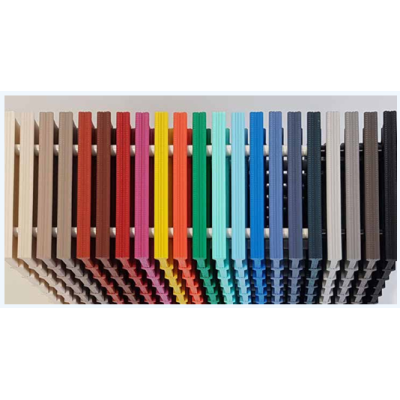

Colour: Standard White (DEPA colour palette)
-
Compatibility: Straight overflow channels
🔧Features
-
Modular interlocking segments
-
Manufactured to exact customer width
-
Durable in chlorinated and outdoor pool environments
-
High pedestrian load strength
-
Easy to install, clean, and replace
💦Typical Applications
-
Public swimming pools
-
Hotel and leisure pools
-
Wellness and hydrotherapy pools
-
Aquatic centres and splash areas
-
Overflow gutter renovation projects
🔍Notes
-
Width is always customised between 150 mm and 195 mm based on project requirements.
-
Production begins after width confirmation from the client.
