  • PANDAPOOL - Electro-hydraulic mobile pool lift for transport and pool access of disabled people Max load: 150 kg

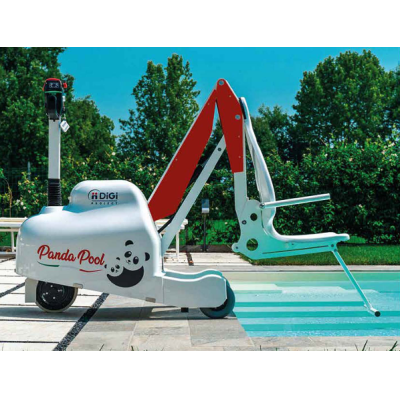

PANDAPOOL - Electro-hydraulic mobile pool lift for transport and pool access of disabled people Max load: 150 kg

PANDAPOOL - Electro-hydraulic mobile pool lift for transport and pool access of disabled people Max load: 150 kg

€13707.12

The PANDAPOOL Electro-Hydraulic Mobile Pool Lift is a versatile, high-performance mobility solution designed to provide safe, comfortable, and independent access to swimming pools for people with disabilities or reduced mobility. Its mobile, wheeled chassis allows effortless transport of the user directly from the changing area to the poolside, eliminating the need for multiple transfers. The electro-hydraulic lifting mechanism ensures smooth, stable, and controlled movement into and out of the water. The lift features an ergonomic seat with safety restraints, high-quality corrosion-resistant construction, and intuitive controls that make operation simple for both the user and the operator. Designed for indoor and outdoor pools, rehabilitation centres, leisure facilities, hotels, and private installations, PANDAPOOL ensures accessibility while meeting modern safety and mobility standards.

BluePulse Advanced Swimming Pool Engineering Limited provides full installation, operator instruction, configuration, and both warranty and post-warranty service for all pool lifts and accessibility systems.

Contact us at webshop@bluepulse.ie for technical guidance, product selection, and on-site accessibility assessment.

  • Symbol: 200101001

♿ Motorised Pool Lift – Technical Specification Sheet

Certified Medical Device (EU 2017/745 – Class I)
Patent: MN2013U1
European Registered Design: No. 0021782020001

Professional motorised swimming pool lift designed for safe and reliable access for individuals with reduced mobility.
Complies with EU Medical Devices Regulation 2017/745 (Class I), Machinery Directive 2006/42/EC, and EMC Directive 2004/108/EC.

⚙️ Technical Specifications

  • Maximum load capacity: 150 kg

  • Maximum travel: 1390 mm

  • Seat immersion depth: 780 mm

  • Lifting/lowering time (with user): 20 seconds

  • Unit weight: 260 kg

  • Power supply: 24 V battery

  • Average autonomy: ~50 working cycles per charge

  • Drive system: Electro-hydraulic with motorised traction

  • Movement speeds: 2 motorised speeds

  • Emergency manual pump: Included (operation without power)

🔧 Control & Safety Systems

  • Handset for lifting and lowering

  • Control bar for forward motion + seat movement

  • Starter key

  • Battery charge level indicator

  • Emergency stop button

  • Anti-crushing system (reverse safety)

  • Automatic braking integrated in motorised wheel

  • Infrared front obstacle sensor (forward safety stop)

  • Front rubber stoppers – secure stopping in forward direction

  • Internal battery charger with LED indicator

🪑 Seat & Comfort Features

  • 4-point safety belt (included)

  • 5-point safety belt (optional)

  • Retractable leg support

  • Adjustable armrests

  • Protective cover (optional)

  • Custom-made access ramp (optional)

📦 Included Components

  • Motorised base with electro-hydraulic lifting system

  • 24 V removable battery

  • Handset controller

  • Safety belts

  • Integrated charger

📍 Typical Applications

  • Public swimming pools

  • Rehabilitation centres

  • Hotels & wellness facilities

  • Healthcare facilities

  • Accessibility installations requiring certified medical-grade equipment


Symbol: 200101001
Weight 260 kg
