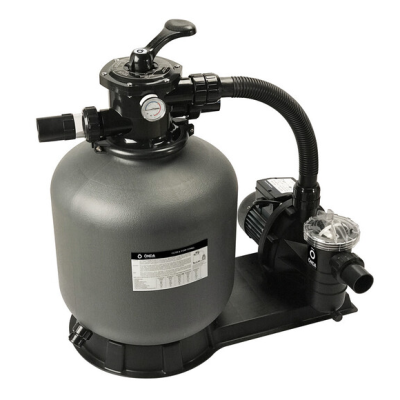

♻️ ONDA Filtration Kit – 4 m³/h – Compact Sand Filtration System

The ONDA Filtration Kit – 4 m³/h is a complete pool water treatment solution designed for small residential pools, spas, and compact aquatic systems.
This kit integrates a high-density polyethylene (HDPE) sand filter, multiport valve, and all necessary connections, providing efficient, reliable, and easy-to-maintain filtration at a flow rate of 4 m³/h.

The system ensures clear, hygienic water with minimal maintenance. Its compact design makes it ideal for tight plant rooms or limited-space installations, without compromising filtration efficiency or durability.

✅ Key Features

• Compact filtration kit – ideal for small pools and spas

• Flow rate: 4 m³/h, suitable for low-volume systems

• High-density polyethylene (HDPE) construction – corrosion and UV resistant

• Integrated multiport valve – easy control of filtration, backwash, rinse, and waste cycles

• Seamless tank design – durable and pressure-tested

• Low maintenance – simple sand replacement and cleaning

• Smooth internal surface – prevents debris buildup and improves filtration efficiency

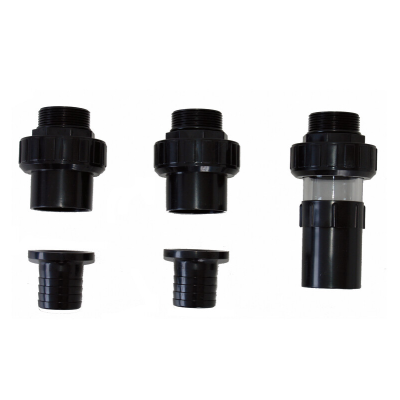

• All-inclusive kit – filter, valve, connections, and media included

⚙️ Technical Specifications

• Model: ONDA Filtration Kit 4 m³/h

• Type: HDPE sand filter system with multiport valve

• Filtration flow rate: 4 m³/h

• Connection size: 1½″ BSP (typical for compact units)

• Filter tank material: HDPE

• Media capacity: approx. 15–20 kg sand (depending on model)

• Maximum working pressure: 2.5 bar

• Test pressure: 3.75 bar

• Maximum operating temperature: 40 °C

• Height: approx. 600–650 mm (compact footprint)

📍 Typical Applications

• Small residential swimming pools

• Compact spas and hot tubs

• Private plunge pools

• Seasonal or portable pool systems

• Systems with low water turnover requirements
