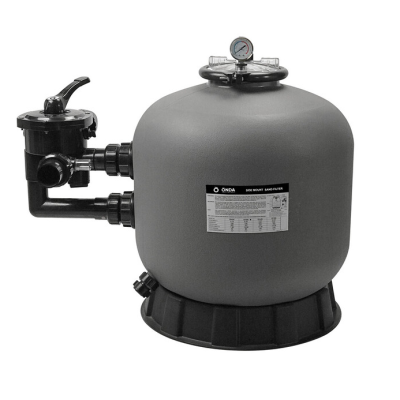

♻️ Onda Filter – Side Mount – D627mm – High-Density Polyethylene Sand Filter

The Onda Filter – Side Mount – D627mm is a high-capacity sand filtration system designed for medium to large residential, hotel, and commercial swimming pools.
Constructed from one-piece, high-density polyethylene (HDPE), the filter provides excellent chemical resistance, corrosion protection, and long-term durability, ensuring reliable operation in demanding environments.

Featuring a side-mounted multiport valve, the Onda D627 filter allows easy operation of filtration, backwash, rinse, recirculation, and waste cycles, providing convenience and precise control over water treatment.
Its internal lateral system ensures uniform water distribution and high filtration efficiency, maintaining crystal-clear water with minimal pressure drop.

✅ Key Features

• Side-mount design with multiport valve for easy control and maintenance

• High-density polyethylene (HDPE) tank – UV and corrosion resistant

• One-piece seamless construction – durable and pressure-tested

• Maximum working pressure: 2.5 bar

• Test pressure: 3.75 bar

• Maximum operating temperature: 40 °C

• Efficient filtration performance with low pressure drop

• Smooth internal surface – prevents debris buildup and simplifies cleaning

• Robust design for medium to large pool systems

• Compatible with standard pool pumps and sand media

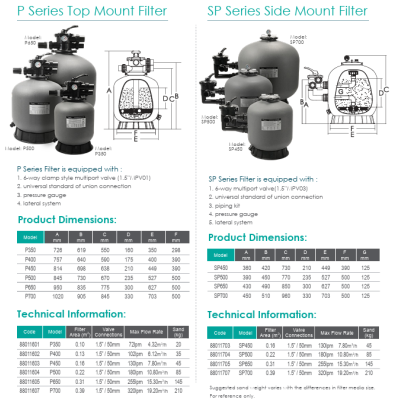

⚙️ Technical Specifications

• Model: Onda Filter D627 (Side Mount)

• Type: High-Density Polyethylene (HDPE) Sand Filter

• Filter diameter: Ø627 mm

• Filtration area: approx. 0.28 m²

• Recommended flow rate: 15.6 m³/h (depending on pump and pool size)

• Connection size: 2″ BSP

• Media capacity: approx. 90–100 kg of sand (0.4–0.8 mm grade)

• Maximum working pressure: 2.5 bar

• Test pressure: 3.75 bar

• Maximum operating temperature: 40 °C

• Height: approx. 950 mm

• Installation type: Side-mount multiport valve with pressure gauge and drain plug

📍 Typical Applications

• Medium to large residential pools

• Hotel and spa pools

• Commercial and public pools

• Hydrotherapy and wellness facilities

• Systems requiring high flow capacity and easy maintenance
