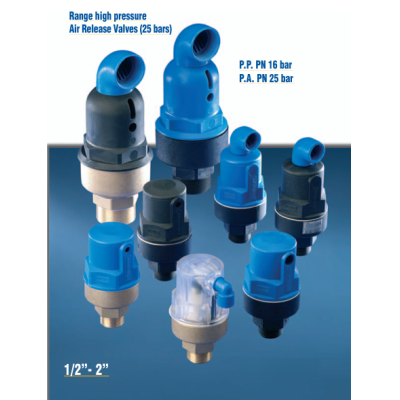

💨 NET® Air Valve 1” PA – Simple Effect (Automatic Air Release Valve)

The NET® Air Valve 1” PA Simple Effect is a single-function automatic air release valve engineered for continuous air venting in pressurized pipelines, filtration circuits, and swimming pool systems.
It automatically expels trapped air from the system during operation, maintaining optimal flow efficiency and preventing hydraulic imbalance caused by air accumulation.

Constructed from reinforced polyamide (PA) with brass and polymer internal components, this valve ensures long-term reliability, chemical resistance, and durability even in chlorinated or treated water environments.

✅ Key Features

• Simple-effect design for automatic, continuous air venting

• 1” BSP male threaded connection

• High-precision float system ensures reliable operation and leak prevention

• Reinforced PA (polyamide) body for superior mechanical strength

• Brass and P.P.S. internal components for enhanced chemical resistance

• Compact, lightweight, and easy to install

• Resistant to chlorine, UV radiation, and corrosion

• Ideal for use in pool, irrigation, and water treatment systems

⚙️ Technical Specifications

• Type: Automatic Air Release (Simple Effect)

• Connection: 1” BSP male

• Body material: Reinforced PA (Polyamide)

• Internal components: Brass + P.P.S. / PP float

• Working pressure: Up to 25 bar (PN25)

• Operating temperature: 0 – 60°C

• Mounting position: Vertical only

• Applications: Swimming pools, irrigation, and water treatment systems

📍 Typical Applications

• Swimming pool filtration and recirculation systems

• Irrigation and water distribution lines

• Water treatment plants and pressure filters

• Pump discharge and suction manifolds

• Industrial and municipal water networks
