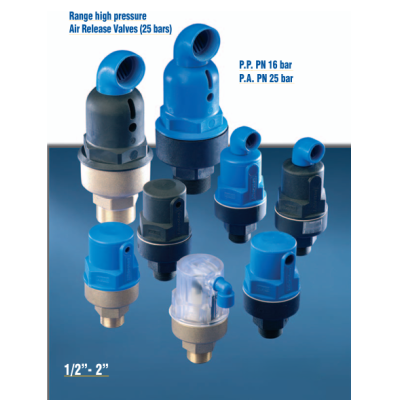

💨 NET® Air Valve 1” PA Brass – Triple Effect with 3/8” Elbow Connection

The NET® Air Valve 1” PA Brass Triple Effect is a multi-function automatic air release and vacuum valve designed for use in pressurized water systems, swimming pools, and filtration networks.
It combines three operational functions — kinetic discharge, automatic air release, and vacuum relief — in one robust and compact body.

Equipped with a 3/8” brass elbow outlet, this model allows flexible installation and safe air venting even in confined spaces or vertical lines.
Constructed from reinforced polyamide (PA) and brass components, it guarantees durability, corrosion resistance, and long-term reliability under chlorinated or chemically treated conditions.

✅ Key Features

• Triple-effect valve:

  • Kinetic discharge during pipe filling

  • Automatic air release during operation

  • Vacuum relief during pipe emptying

• Connection size: 1” BSP male

• Additional 3/8” brass elbow for external air outlet or control tube connection

• Reinforced PA (polyamide) body and brass internal elements

• Float-seal system prevents water leakage and false sealing

• High chemical, chlorine, and UV resistance

• Compact and easy to install – suitable for tight spaces

• Ideal for pool filtration systems, water networks, and irrigation lines

⚙️ Technical Specifications

• Type: Triple Effect (Automatic + Kinetic + Vacuum)

• Connection: 1” BSP male

• Secondary outlet: 3/8” brass elbow fitting

• Body material: PA (polyamide), corrosion-resistant

• Internal components: Brass and P.P.S.

• Float: Polypropylene / P.P.S.

• Max working pressure: 16 bar (PN16)

• Operating temperature: 0 – 60°C

• Mounting position: Vertical

• Application: Pools, irrigation, and pressurized water systems

📍 Typical Applications

• Swimming pool filtration circuits

• Automatic air release in dosing or pressurized lines

• Water supply and irrigation networks

• Industrial and treatment systems

• Pump discharge and vacuum prevention applications
