  • F100 M Electric fixed pool lift for pool access of disabled people Max load: 140 kg

F100 M Electric fixed pool lift for pool access of disabled people Max load: 140 kg

F100 M Electric fixed pool lift for pool access of disabled people Max load: 140 kg

€10332.00

The F100 M Electric Fixed Pool Lift is a reliable and robust accessibility solution designed to provide safe, comfortable, and effortless pool entry for individuals with disabilities or reduced mobility. Featuring an electric lifting system, it ensures smooth and controlled movement, allowing the user to be safely lowered into and raised out of the pool with minimal assistance. Constructed from high-strength, corrosion-resistant materials, the F100 M is suitable for indoor and outdoor swimming pool environments, including hotels, public pools, therapy centres, leisure facilities, and private installations. Its ergonomic seat with integrated safety restraints ensures comfort and stability, while the fixed anchoring system guarantees maximum structural safety. With a maximum load capacity of 140 kg, the F100 M meets modern safety and accessibility standards, providing reliable daily operation and long service life.

BluePulse Advanced Swimming Pool Engineering Limited provides full installation, configuration, operator training, and both warranty and post-warranty service for all fixed and mobile pool lifts.

Contact us at webshop@bluepulse.ie for technical assistance, product selection, and site-specific accessibility evaluation.

  • Symbol: 200102002
  • Delivery time: to the month

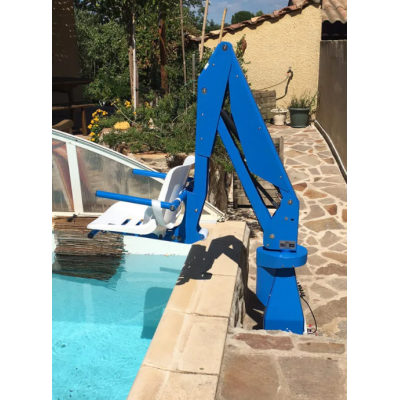

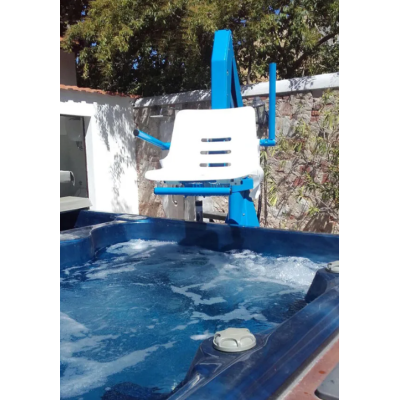

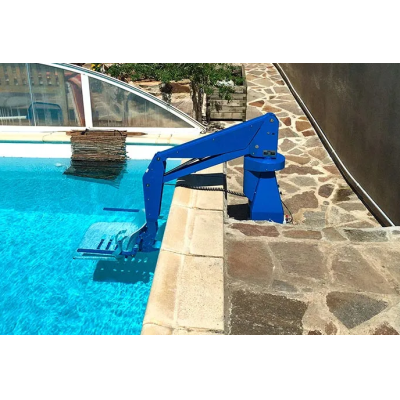

♿ F100 M – Electric Fixed Pool Lift

Medical Device (EU 2017/745 – Class I)

The F100 M is a fully motorised fixed pool lift designed to allow users with reduced mobility to access the pool independently.
The user positions themselves on the seat and, through the handset remote control, can lift, rotate (up to 350°), and lower into the water without assistance, ensuring maximum autonomy and safety.

Built with a corrosion-resistant stainless-steel in-water frame, galvanized and 180°C powder-coated structure, the F100 M combines durability, smooth operation, and certified medical-device safety.

⚙️ Technical Specifications

  • Maximum capacity: 140 kg

  • Maximum travel: 1210 mm

  • Lifting/lowering time (with user): 20 seconds

  • Rotation: 350° manual or motorised (optional)

  • Unit weight: 100 kg

  • Battery: 24 V

  • Average autonomy: approx. 50 working cycles

🔧 Control & Safety Systems

  • Starter key

  • Emergency stop button

  • Electro-hydraulic control box

  • Spiral-cable handset (up/down, user-operated)

  • Emergency manual hydraulic pump (operation during power failure)

  • 2-point safety belt (standard)

  • Optional 4- or 5-point safety belts

  • Stainless-steel components for submerged areas

  • Galvanizing + 180°C powder-coating for corrosion protection

🪑 Comfort & Functional Features

  • Retractable leg support

  • Adjustable armrests

  • Smooth electro-hydraulic lifting

  • External battery charger

  • Optional headrest

  • Optional extended base lengths (0 mm / 200 mm / 400 mm)

  • Allows independent pool entry without operator assistance

📦 Optional Accessories

  • 4-point safety belt

  • 5-point safety belt

  • Motorised rotation kit

  • Headrest

  • Customised base lengths

📍 Typical Applications

  • Public pools

  • Hotels, wellness & spa facilities

  • Rehabilitation and hydrotherapy centres

  • Private pools requiring independent, fixed-access lifting systems

  • Healthcare environments needing certified medical lifting equipment

🏛️ Patent & Certifications

  • EU Medical Devices Regulation 2017/745 – Class I

    • F100: DM 321258/R

    • F100 M: DM 943674/R

  • Directive 2006/42/EC – Machinery Directive

  • Directive 2004/108/EC – EMC Electromagnetic Compatibility



Symbol: 200102002
Weight 100 kg
