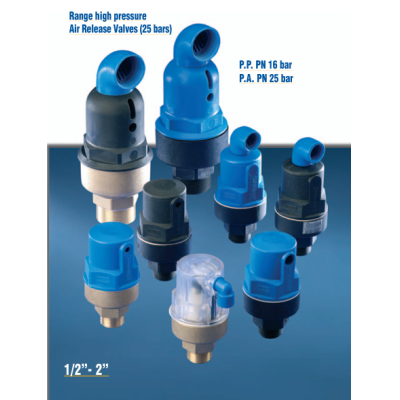

💨 ECO Air Valve 1” PA – Double Effect (Automatic + Kinetic Air Release Valve)

The ECO Air Valve 1” PA Double Effect is a dual-function air management valve designed to efficiently release trapped air and admit large volumes of air in pressurized pipelines and filtration systems.
Combining automatic and kinetic functionalities, it ensures smooth hydraulic performance, prevents air locks, and protects pipelines and filters from vacuum conditions during drainage or system shutdowns.

Constructed from reinforced polyamide (PA) with brass and polymer internal components, the ECO model offers long-lasting durability, chemical resistance, and reliable operation in both chlorinated and untreated water environments.

✅ Key Features

• Double-effect design:

  • Kinetic function – expels large air volumes during filling

  • Automatic function – releases small air bubbles during system operation

• 1” BSP male threaded connection

• Reinforced PA (polyamide) body – corrosion- and UV-resistant

• Brass and polymer internal parts ensure mechanical strength

• Compact and lightweight design for easy installation

• Leak-proof float system for dependable sealing

• Designed for vertical installation

• Suitable for high-pressure systems (up to PN25)

⚙️ Technical Specifications

• Type: Double Effect (Automatic + Kinetic)

• Connection: 1” BSP male

• Body material: Reinforced PA (Polyamide)

• Internal components: Brass + P.P.S. / PP float

• Working pressure: Up to 25 bar (PN25)

• Operating temperature: 0 – 60°C

• Mounting position: Vertical only

• Applications: Swimming pools, irrigation, and water treatment systems

📍 Typical Applications

• Swimming pool filtration and circulation systems

• Irrigation and agricultural pipelines

• Water treatment and purification networks

• Pump suction and discharge manifolds

• Industrial and municipal water systems
