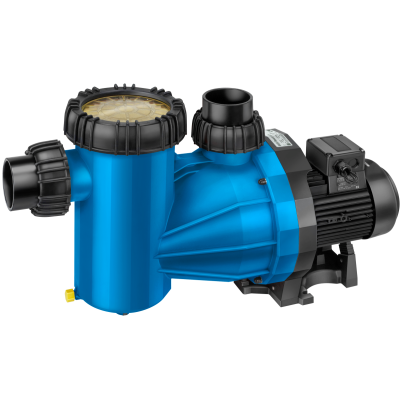

♻️ BADU Resort 40 – High-Performance Pool Circulation Pump

(3~ Y/Δ 400/230 V)

The BADU Resort 40 is a self-priming, high-efficiency circulation pump designed by SPECK Pumpen (Germany) for commercial, public, and hotel swimming pools that require continuous, high-volume water circulation.
Combining quiet operation, energy-efficient performance, and robust construction, this model ensures long-term reliability in demanding filtration and recirculation systems.

Manufactured from glass-fibre reinforced polypropylene (PP-GF30), the BADU Resort 40 offers excellent corrosion resistance against chlorine and mild saltwater.
Equipped with a three-phase motor (Y/Δ 400/230 V), it delivers smooth, efficient, and vibration-free operation, while the motor shaft is completely isolated from pool water — ensuring electrical safety, no galvanic corrosion, and long service life.

✅ Key Features

• Three-phase motor (Y/Δ 400/230 V) – ensures stable and energy-efficient performance

• Flow rate up to approx. 40 m³/h – ideal for medium-sized pool systems

• Head up to approx. 10 m WS – balanced hydraulic output for consistent circulation

• Motor output (P₂): approx. 1.5 kW – efficient operation with low power consumption

• Self-priming up to 3 m – flexible installation above or below water level

• Corrosion-resistant PP-GF30 construction – durable and suitable for pool water applications

• Precision-balanced impeller and diffuser – reduces vibration and operating noise

• Integrated large strainer basket – approx. 5–6 L capacity for extended maintenance intervals

• Motor shaft isolated from pool water – provides full electrical separation and safety

• Mechanical seal on plastic shaft protector – ensures reliable sealing and easy servicing

• AK version available – suitable for saltwater applications above 0.5% (5 g/L)**

⚙️ Technical Specifications

• Model: BADU Resort 40

• Manufacturer: SPECK Pumpen, Germany

• Type: Centrifugal self-priming pool circulation pump

• Power supply: 3~ Y/Δ 400/230 V, 50 Hz

• Motor output (P₂): approx. 1.5 kW

• Power input (P₁): approx. 1.9 kW

• Maximum flow rate: approx. 40 m³/h

• Head: approx. 10 m WS

• Maximum casing pressure: 2.5 bar

• Maximum water temperature: 60 °C

• Connection ports: Ø90 mm (suction/discharge)

• Material composition:

  • Pump housing – PP-GF30 (glass-fibre reinforced polypropylene)

  • Diffuser – PP-GF30

  • Impeller – PPE-GF30 / PP-GF30

  • Shaft – stainless steel (AISI 316)

  • Seal – carbon/ceramic/EPDM mechanical seal

• Strainer basket capacity: approx. 5–6 L

• Installation: Dry installation, up to 3 m above or below water level

• Water compatibility:

  • Standard version: up to 0.5% salt content (5 g/L)

  • AK version: for higher saltwater concentrations

📍 Typical Applications

• Commercial and hotel swimming pools

• Public leisure and wellness pools

• Large private pools

• Aquatic facilities and water attractions

• Continuous-duty recirculation and filtration systems
