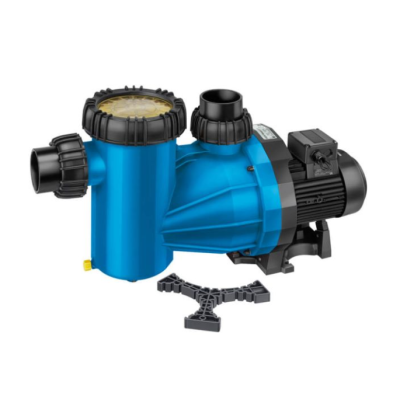

♻️ BADU Resort 110 – Three‑Phase Circulation Pump (Y/Δ 690/400 V)

The BADU Resort 110 is a heavy-duty, three-phase pool circulation pump tailored for large commercial, wellness, and hotel pools. With its self-priming design and integrated strainer basket, it’s optimized for reliable, high-volume water flow while remaining easy to maintain.

✅ Key Features

• Three‑phase motor with Y/Δ (star/delta) connection for soft start and energy efficiency

• Corrosion‑resistant housing (PP GF 30) and impeller materials for long-term durability

• Integrated 10 L strainer tank for large debris retention

• Motor shaft electrically isolated from water — no direct contact with pool water

• Self‑priming capability: can be installed up to 3 m above or below water level

• Suitable for chlorinated and saltwater pools (salt concentration up to 0.5%)

⚙️ Technical Specifications

• Model: BADU Resort 110

• Power supply: 3~ Y/Δ 690/400 V

• Power input (P₁): ~ 6.17 kW

• Power output (P₂): 5.50 kW

• Max. flow rate: ~ 125 m³/h (according to Speck)

• Max. head: ~ 22 m water column

• Inlet / outlet connections: Ø 110 mm

• Rotation speed: ~ 2840 rpm

• Max water temperature: 40 °C (60 °C peak)

• Max casing pressure: 2.5 bar

• Weight: ~ 41 kg

• Mechanical seal: Carbon / ceramic / NBR

📍 Typical Applications

• Large hotel or resort swimming pools

• Public and commercial aquatic facilities

• Wellness spas, splash parks, and massage pools

• Filtration circulation for high-volume pool systems
