♻️ BADU EasyFit 36 – Three-Phase Pool Circulation Pump (400/230 V, 50 Hz)

The BADU EasyFit 36 is a high-capacity three-phase self-priming circulation pump designed for large residential, commercial, and public swimming pools.
It delivers robust hydraulic performance, quiet operation, and long-term reliability for demanding filtration systems.
Constructed with corrosion-resistant materials, it is suitable for chlorinated and mild salt-water pools (up to 0.5 % salinity).

✅ Key Features

• Three-phase 400/230 V (Y/Δ) supply – stable and energy-efficient operation for demanding pool installations.

• Self-priming design – suitable for installation up to 2 m above or 3 m below water level.

• Quiet, high-efficiency motor with electrical isolation from water.

• Durable corrosion-resistant housing – designed for heavy-duty use.

• Transparent strainer lid – allows quick inspection and maintenance.

• Salt-water compatible up to 0.5 % (≈ 5 g/L).

• Thermal overload protection integrated in the motor.

• Modular and compact design – flexible installation and retrofit options.

⚙️ Technical Specifications

• Model: BADU EasyFit 36

• Power supply: 3~ 400/230 V (Y/Δ) / 50 Hz

• Input power (P₁): ≈ 2.55 kW

• Output power (P₂): ≈ 1.85 kW

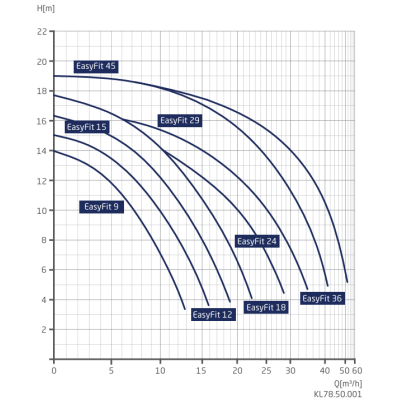

• Flow rate: ≈ 36 m³/h

• Connections: Ø 80 mm suction / Ø 80 mm discharge

• Self-priming lift: up to 2 m

• Max water temperature: 60 °C

• Max salt concentration: 0.5 % (≈ 5 g/L)

• Recommended pool volume: up to ≈ 140–180 m³ (depending on system design)

???? Typical Applications

• Large residential pools

• Hotel, spa, and wellness facilities

• Commercial and public swimming pools

• Salt-water or chlorinated pool systems
