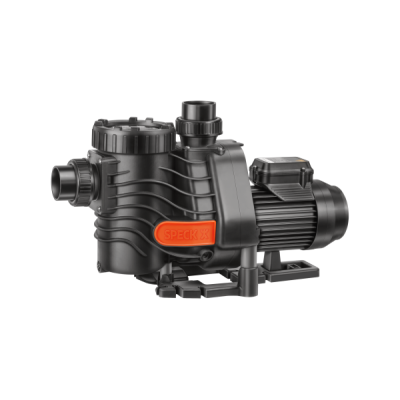

♻️ BADU EasyFit 24 – Single-Phase Pool Circulation Pump (230 V / 50 Hz)

The BADU EasyFit 24 is a self-priming circulation pump engineered for reliable water filtration and circulation in residential and light-commercial swimming pools.

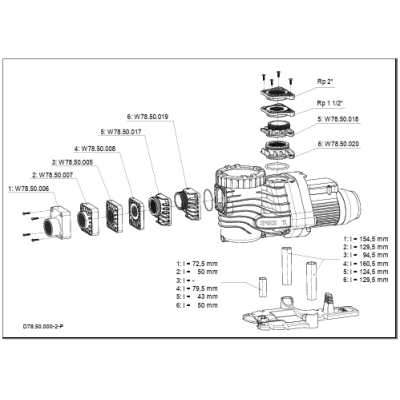

Its modular construction allows for easy adaptation to existing plumbing, making it ideal for retrofits or replacements.
Built from corrosion-resistant materials, the pump is suitable for both chlorinated and mild salt-water pools (up to 0.5% salt concentration).

✅ Key Features

• Full hydraulic compatibility with multiple connection variants — simplifies replacement installations.

• Self-priming design – can be installed up to 2 m above or 3 m below the water level.

• Single-phase 230 V / 50 Hz supply – suitable for standard residential installations.

• Quiet and efficient motor with electrical separation from pool water for maximum safety.

• Corrosion-resistant plastic housing – durable and low maintenance.

• Transparent strainer lid for easy visual inspection.

• Salt-water compatible up to 0.5% salinity.

• Thermal overload protection integrated in the motor.

⚙️ Technical Specifications

• Model: BADU EasyFit 24

• Power supply: 1~ 230 V / 50 Hz

• Input power (P₁): ≈ 1.45 kW

• Output power (P₂): ≈ 1.00 kW

• Rated current: ≈ 6.4 A

• Flow rate: ≈ 24 m³/h

• Connections: Ø 63 mm suction / Ø 63 mm discharge

• Self-priming lift: up to 2 m

• Max water temperature: 60 °C

• Max salt concentration: 0.5% (≈ 5 g/L)

• Recommended pool volume: up to ≈ 96 m³ (depending on filtration design)

📍 Typical Applications

• Residential swimming pools and small commercial pools

• Filter systems requiring self-priming capability

• Pump replacement projects in existing installations

• Salt-water or chlorinated pool circulation
