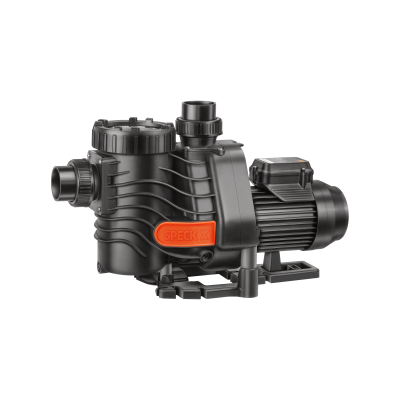

♻️ BADU EasyFit 15 – Three-Phase Pool Circulation Pump (400/230 V, 50 Hz)

The BADU EasyFit 15 is a three-phase self-priming circulation pump designed for medium-sized residential and commercial swimming pools.
It provides high hydraulic performance, long service life, and quiet operation, making it an excellent choice for professional pool filtration systems.
Constructed from corrosion-resistant materials, it is suitable for chlorinated and mild salt-water applications (up to 0.5 % salinity).

✅ Key Features

• Three-phase 400/230 V (Y/Δ) power supply – stable and efficient for demanding systems.

• Self-priming design – installation possible up to 2 m above or 3 m below the water level.

• Quiet and efficient asynchronous motor with complete electrical separation from the water circuit.

• Durable, corrosion-resistant plastic housing for long-term reliability.

• Transparent strainer lid – easy visual inspection and maintenance.

• Salt-water compatible up to 0.5 % (≈ 5 g/L).

• Thermal overload protection integrated for safety.

• Compact design with modular connections for flexible installation.

⚙️ Technical Specifications

• Model: BADU EasyFit 15

• Power supply: 3~ 400/230 V (Y/Δ) / 50 Hz

• Input power (P₁): ≈ 0.90 kW

• Output power (P₂): ≈ 0.60 kW

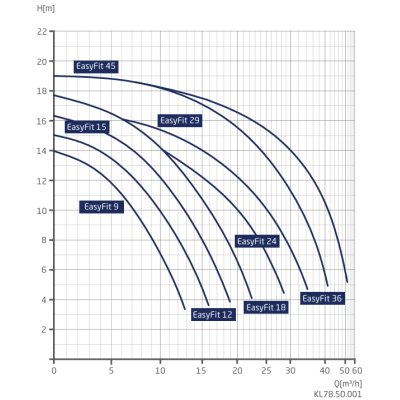

• Flow rate: ≈ 15 m³/h

• Connections: Ø 50 mm suction / Ø 50 mm discharge

• Self-priming lift: up to 2 m

• Max water temperature: 60 °C

• Max salt concentration: 0.5 % (≈ 5 g/L)

• Recommended pool volume: up to ≈ 60 m³ (depending on filtration design)

📍 Typical Applications

• Medium-sized residential pools

• Hotel or spa filtration systems

• Commercial or semi-public pools

• Salt-water or chlorinated pool installations
