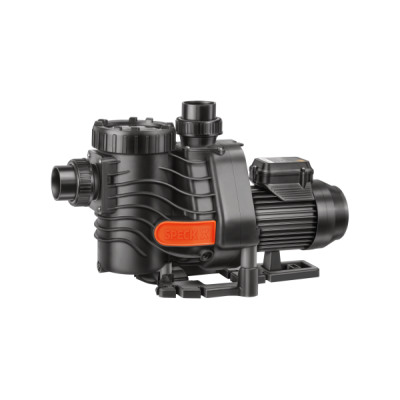

♻️ BADU EasyFit 12 – Single-Phase Pool Circulation Pump (230 V / 50 Hz)

The BADU EasyFit 12 is a self-priming circulation pump engineered for small to medium-sized residential swimming pools.
It combines energy-efficient operation, quiet performance, and robust design, ensuring long-lasting reliability for pool filtration systems.
Built from corrosion-resistant materials, it is ideal for chlorinated and mild salt-water pools (up to 0.5 % salinity).

✅ Key Features

• Single-phase 230 V / 50 Hz supply – suitable for residential pool installations.

• Self-priming design – enables flexible placement up to 2 m above or 3 m below the water level.

• Quiet asynchronous motor with electrical isolation from water for maximum safety.

• Durable plastic housing – corrosion-resistant and easy to maintain.

• Transparent strainer lid – allows quick inspection of debris.

• Salt-water compatible up to 0.5 % (≈ 5 g/L).

• Thermal overload protection integrated into the motor.

• Compact, modular design for simple installation or replacement.

⚙️ Technical Specifications

• Model: BADU EasyFit 12

• Power supply: 1~ 230 V / 50 Hz

• Input power (P₁): ≈ 0.75 kW

• Output power (P₂): ≈ 0.50 kW

• Rated current: ≈ 3.7 A

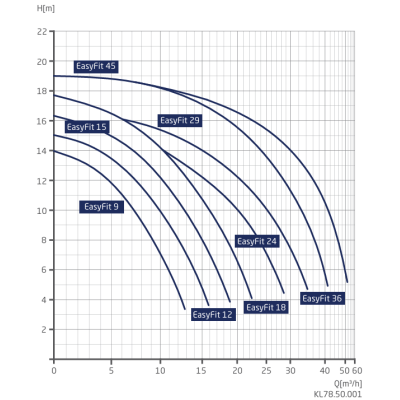

• Flow rate: ≈ 12 m³/h

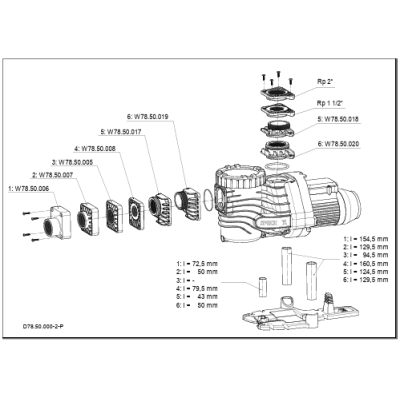

• Connections: Ø 50 mm suction / Ø 50 mm discharge

• Self-priming lift: up to 2 m

• Max water temperature: 60 °C

• Max salt concentration: 0.5 % (≈ 5 g/L)

• Recommended pool volume: up to ≈ 48 m³ (depending on system design)

📍 Typical Applications

• Residential swimming pools

• In-ground and above-ground filtration systems

• Salt-water or chlorinated pools

• Pump replacement or retrofit projects
