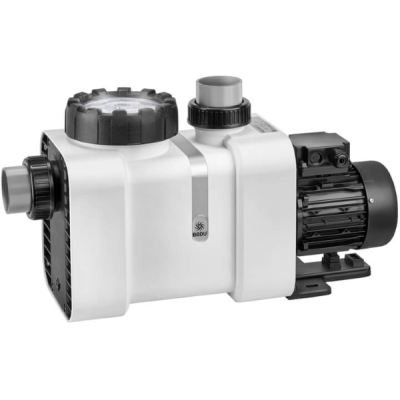

BADU Delta 28 - 1~ 230 V 50Hz
The BADU Delta 28 is a high-capacity, energy-efficient circulation pump engineered for large private swimming pools and light-commercial installations. Operating on a single-phase 230 V supply, it provides powerful and stable water flow while maintaining exceptionally quiet performance. Constructed from corrosion-resistant materials with a durable hydraulic design, the BADU Delta 28 ensures long service life and reliable operation under demanding conditions. Its user-friendly installation and compatibility with new and existing filtration systems make it a strong choice for high-performance pool circulation.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, diagnostics, and both warranty and post-warranty service for all BADU circulation pumps.
Contact us at webshop@bluepulse.ie for technical guidance and assistance in selecting the correct BADU Delta pump for your filtration system.
- Symbol: 020203005
- Availability: Available
- Delivery time: up to 14 days
♻️ BADU Delta 28 – High-Efficiency Pool Circulation Pump (1~ 230 V, 50 Hz)
Single-Phase Heavy-Duty Pump for Large Residential & Commercial Pools
The BADU Delta 28 is a high-capacity, single-phase circulation pump designed for large residential pools, hotel pools, and commercial aquatic installations.
With its advanced BADU hydraulic system, this model delivers very high flow performance, quiet operation, and excellent long-term reliability, making it ideal for demanding filtration systems.
Its reinforced thermoplastic housing, glass-fibre impeller, and oversized prefilter ensure superior durability and efficient water movement, even in saltwater environments.
Designed for continuous operation, the BADU Delta 28 guarantees stable pressure, optimal water turnover, and low energy consumption.
✅ Key Features
-
High-capacity single-phase 230 V motor
-
Extremely strong flow output for large pools and long circulation lines
-
Low-noise, low-vibration operation
-
Extra-large prefilter basket for superior debris retention
-
Corrosion-resistant construction suitable for saltwater and chlorinated pools
-
Energy-efficient hydraulic design reduces operating costs
-
Self-priming system for stable operation
-
IP55 motor protection with integrated thermal overload
-
Easy maintenance thanks to quick-access transparent lid
⚙️ Technical Specifications
-
Model: BADU Delta 28
-
Power supply: 230 V / 50 Hz (single-phase)
-
Motor output: approx. 2.8–3.5 kW
-
Flow rate: approx. 38–48 m³/h (depending on installation conditions)
-
Connections: Ø75 mm union fittings
-
Prefilter: Extra-large capacity basket
-
Pump housing: High-strength corrosion-resistant thermoplastic
-
Impeller: Glass-fibre reinforced composite
-
Protection class: IP55 motor protection
-
Installation: Indoor or outdoor (sheltered position recommended)
📍 Typical Applications
-
Large residential swimming pools
-
Hotel, spa, and wellness centre pools
-
Commercial filtration systems
-
Long pipe runs and high-flow installations
-
Saltwater pool systems
