InPool – Electric Fixed Pool Lif Max load 140kG
The InPool Electric Fixed Pool Lift is a high-quality, permanently installed access system designed to provide safe, comfortable, and independent entry into swimming pools for people with disabilities or reduced mobility. Its electric lifting mechanism ensures smooth, controlled movement, allowing users to enter and exit the pool securely and with minimal assistance. Built from corrosion-resistant, heavy-duty materials, the InPool lift is suitable for both indoor and outdoor pool environments, including public swimming pools, hotels, rehabilitation centres, and private facilities. The ergonomic seat with safety restraints provides stability and user comfort, while the fixed anchoring system guarantees maximum structural safety. With a maximum load capacity of 140 kg, this lift meets modern accessibility, mobility, and safety standards for pool installations.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, configuration, operator training, and both warranty and post-warranty service for all electric pool lifts and accessibility solutions.
Contact us at webshop@bluepulse.ie for technical support, product selection, and site assessment for your facility.
- Symbol: 200102001
- Delivery time: up to 14 days
♿ InPool – Electric Fixed Pool Lift
Medical Device (EU 2017/745 – Class I)

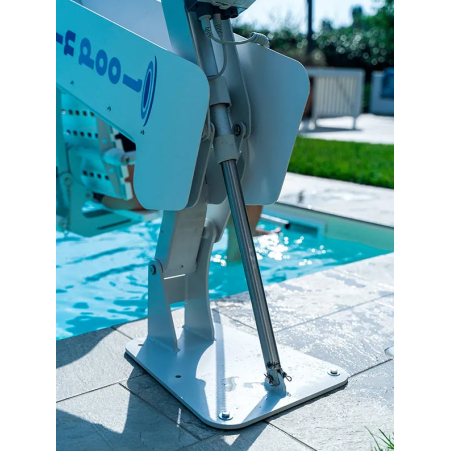

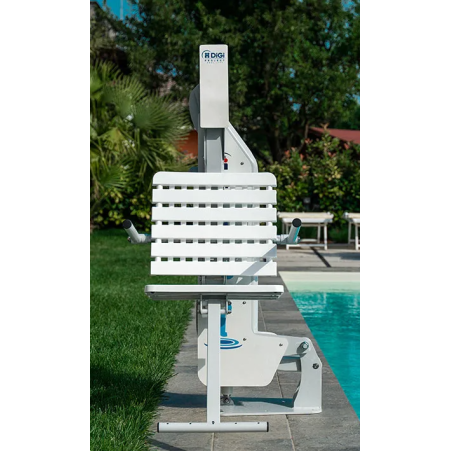

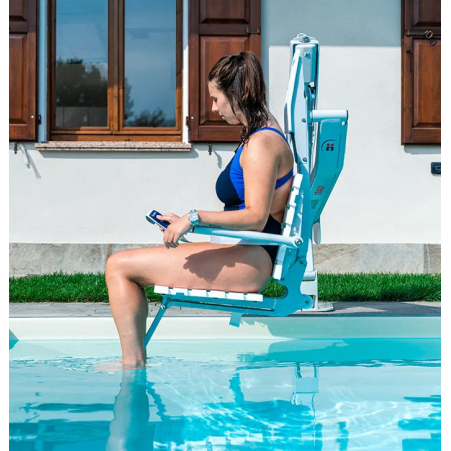

The InPool lift is a fixed electro-mechanical pool access system designed to safely assist users with reduced mobility when entering and exiting the swimming pool.
With a 140 kg load capacity, compact footprint, and high-quality materials, the lift ensures reliable operation, minimal visual impact, and long-term durability.
The unit features a folding seat, adjustable armrests, removable telescopic leg support, and a stainless-steel in-water frame, combining safety, comfort, and practicality.
⚙️ Technical Specifications
-
Maximum capacity: 140 kg
-
Maximum travel: 1350 mm
-
Seat immersion depth: 850 mm
-
Lifting/lowering time (with user): 45 seconds
-
Unit weight: 60 kg
-
Power supply: 24 V removable battery
-
Average autonomy: approx. 50 working cycles
🔧 Control & Safety Systems
-
IPX06 spiral-cable push-button panel (up/down control)
-
Emergency stop button
-
Removable battery + external charger
-
2-point ventral safety belt (standard)
-
Optional 4- or 5-point safety belts
-
Stainless steel structural components for submerged areas
-
Galvanized and 180°C powder-coated finish for corrosion resistance
🪑 Comfort & Functional Features
-
Headrest included
-
Folding seat (reduced overall dimensions when not in use)
-
Removable telescopic leg support
-
Adjustable armrests
-
Compact footprint suitable for narrow pool decks
📦 Optional Accessories
-
4-point safety belt
-
5-point safety belt
-
Protective cover
📍 Typical Applications
-
Public swimming pools
-
Rehabilitation and hydrotherapy centres
-
Hotels, wellness & spa facilities
-
Private pools requiring a fixed and certified medical-grade lift
🏛️ Certifications & Compliance
-
Regulation EU 2017/745 – Medical Devices (Class I)
-
Directive 2006/42/EC – Machinery Directive
-
Directive 2004/108/EC – EMC Electromagnetic Compatibility
