F100 Electric fixed pool lift for pool access of disabled people Max load: 140 kg
The F100 Electric Fixed Pool Lift is a dependable and user-friendly accessibility system designed to provide safe and comfortable access to swimming pools for individuals with disabilities or reduced mobility. Its electric lifting mechanism ensures smooth, controlled, and effortless movement, allowing the user to be lowered into and raised out of the pool securely and with minimal operator effort. Constructed from high-quality, corrosion-resistant materials, the F100 is suitable for indoor and outdoor pools, including public swimming pools, hotels, rehabilitation centres, leisure facilities, and private installations. The ergonomic seat equipped with safety restraints offers excellent stability and comfort, while the permanently fixed anchoring system guarantees maximum structural safety. With a maximum load capacity of 140 kg, the F100 meets modern safety and accessibility standards, delivering reliable everyday performance and long service life.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, configuration, operator training, and both warranty and post-warranty service for all fixed and mobile pool access lifts.
Contact us at webshop@bluepulse.ie for technical guidance, product selection support, and on-site accessibility assessment.
- Symbol: 200102003
- Delivery time: to the month

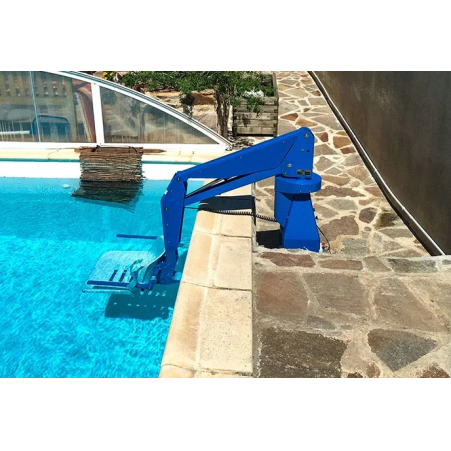

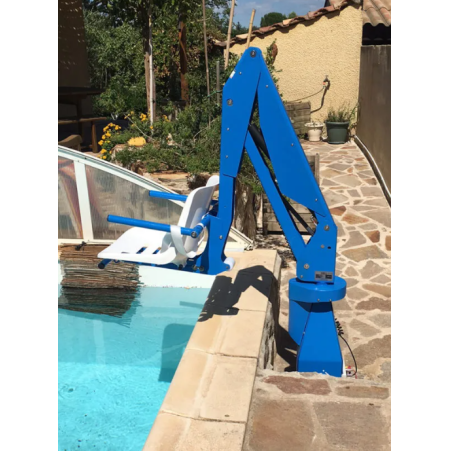

♿ F100 – Electric Fixed Pool Lift
Medical Device (EU 2017/745 – Class I)
Certified by DiGi Project s.n.c.
The F100 is an electric fixed pool lift that provides safe, assisted access to the swimming pool for users with reduced mobility.
It uses an electro-hydraulic lifting system and is controlled via a spiral-cable handset, allowing the operator to lift and lower the user smoothly and securely.
The device is built with stainless steel components for submerged sections and a galvanised + 180°C powder-coated frame, ensuring maximum durability in aquatic environments.
⚙️ Technical Specifications (Confirmed from Manufacturer)
-
Maximum capacity: 140 kg
-
Maximum travel: 1210 mm
-
Lifting/lowering time (with user): 20 seconds
-
Rotation: Manual 350°
-
Unit weight: 100 kg
-
Battery: 24 V removable battery
-
Working autonomy: ~50 cycles per full charge
🔧 Control & Safety Systems
-
Spiral-cable handset for up/down movement
-
Starter key for device activation
-
Emergency stop button
-
Electro-hydraulic control box
-
Emergency manual pump for operation during power failure
-
Standard 2-point safety belt
-
Optional 4- or 5-point safety belts
-
Stainless steel structure for submerged parts
-
Galvanised and high-temperature powder-coated external frame
🪑 Comfort & Functional Features
-
Adjustable armrests
-
Retractable leg support
-
Ergonomic seat
-
External battery charger included
-
Stable fixed-base design for installation on deck level
📦 Optional Accessories
-
4-point safety belt
-
5-point safety belt
-
Headrest
-
Rotation motor (for F100M version only – not applicable to F100)
-
Custom base length versions
📍 Typical Applications
-
Public swimming pools
-
Hotel and wellness centres
-
Hydrotherapy and rehabilitation pools
-
Private pools requiring a certified fixed access lift
🏛️ Certifications & Compliance
-
EU Regulation 2017/745 – Medical Devices (Class I)
-
Machinery Directive 2006/42/EC
-
EMC Directive 2004/108/EC
-
Manufacturer patent approvals for F100 & F100M series
