ECOPOOL - Electro-hydraulic mobile pool lift for transport and pool access of disabled people Max load: 140 kg

ECOPOOL - Electro-hydraulic mobile pool lift for transport and pool access of disabled people Max load: 140 kg

€7576.80

The ECOPOOL Electro-Hydraulic Mobile Pool Lift is a highly versatile, user-friendly mobility solution that enables safe and comfortable pool access for individuals with disabilities or reduced mobility. Its fully mobile chassis allows the user to be transported directly from the changing area to the poolside, eliminating unnecessary transfers and improving accessibility and independence. Powered by an electro-hydraulic lifting system, ECOPOOL provides smooth, stable, and controlled descent into the water and safe lifting back to poolside level. Its ergonomic seat with integrated safety restraints, corrosion-resistant structure, and easy-to-use control panel ensure comfort, safety, and reliability for both the user and the operator. Designed for private pools, public leisure centres, hotels, rehabilitation facilities, and therapy pools, the ECOPOOL lift meets modern standards for accessibility, mobility, and operational safety.

BluePulse Advanced Swimming Pool Engineering Limited provides full installation, operator instruction, configuration, and both warranty and post-warranty service for all pool lifts and accessibility systems.

Contact us at webshop@bluepulse.ie for technical guidance, product selection, and site-specific accessibility assessment.

  • Symbol: 200101006
  • Delivery time: up to 14 days

♿ ECOPOOL – Electro-Hydraulic Mobile Pool Lift

Medical Device (EU 2017/745 – Class I)
International Industrial Design: DM/202557
UNI EN ISO 10535 Certified

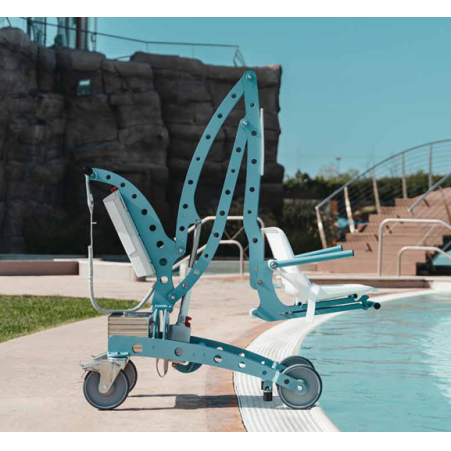

The ECOPOOL is a mobile electro-hydraulic pool lift designed for the transport and water access of users with reduced mobility.
With a 140 kg load capacity, stainless-steel in-water components, and certified medical-device compliance, the lift guarantees safe, stable, and comfortable immersion in public and private pool environments.

The unit includes front rubber safety stoppers, rear pivoting wheels with brake, an included headrest, adjustable armrests, and a removable leg support to ensure ergonomic and secure operation.

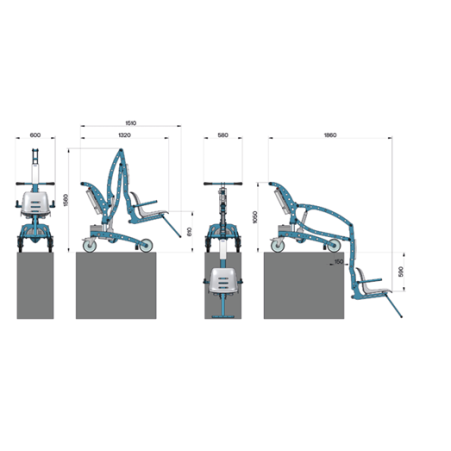

⚙️ Technical Specifications

  • Maximum capacity: 140 kg

  • Maximum travel: 1190 mm

  • Seat immersion depth: 850 mm

  • Lifting/lowering time (with user): 20 seconds

  • Unit weight: 135 kg

  • Battery: 24 V

  • Average autonomy: approx. 50 working cycles

🔧 Control & Safety Systems

  • IPX06 spiral-cable push-button panel for up/down control from the water

  • Rear pivoting wheels with brake

  • Front rubber safety stoppers

  • Emergency stop button

  • 2-point safety belt (included)

  • Optional 4- or 5-point belts

  • Stainless-steel frame for submerged components

  • Protective galvanisation + powder coating

🪑 Comfort & Functional Features

  • Headrest included

  • Adjustable armrests

  • Retractable leg support

  • Smooth electro-hydraulic lifting

  • Designed for comfortable seated immersion

📦 Optional Accessories

  • 4-point safety belt

  • 5-point safety belt

  • Protective cover

📍 Typical Applications

  • Public swimming pools

  • Rehabilitation and hydrotherapy centres

  • Hotels, wellness & spa facilities

  • Healthcare and accessibility installations

  • Facilities requiring certified mobile pool-access equipment

🏛️ Certification & Compliance

  • International Industrial Design: DM/202557

  • EU 2017/745 Medical Devices – Class I (DM 1641494/R)

  • Directive 2006/42/EC – Machinery Directive

  • Directive 2004/108/EC – EMC

  • UNI EN ISO 10535 (Hoists for transfer of disabled persons)



Symbol: 200101006
