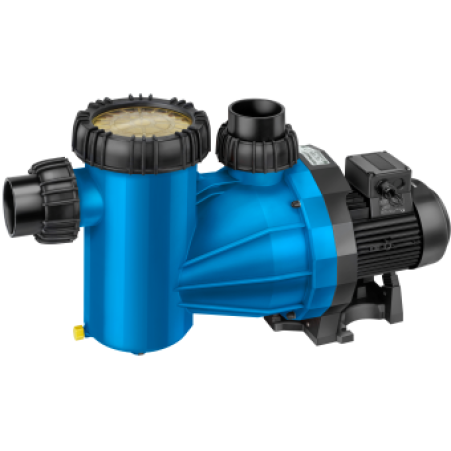

♻️ BADU Resort 60 – High-Performance Pool Circulation Pump

(3~ Y/Δ 400/230 V)

The BADU Resort 60 is a self-priming, high-efficiency circulation pump developed by SPECK Pumpen (Germany) for commercial and public swimming pools, resorts, and wellness centres.
Designed for continuous 24-hour operation, this model provides excellent hydraulic performance, quiet operation, and superior energy efficiency, making it ideal for demanding water circulation and filtration systems.

Constructed from glass-fibre reinforced polypropylene (PP-GF30), the BADU Resort 60 offers exceptional resistance to corrosion and pool chemicals, ensuring a long service life.
Its three-phase motor (Y/Δ 400/230 V) provides reliable, efficient, and vibration-free performance, while the motor shaft is completely isolated from pool water for maximum electrical safety and durability.

✅ Key Features

• Three-phase motor (Y/Δ 400/230 V) – ensures stable operation and high energy efficiency

• Flow rate up to approx. 60 m³/h – ideal for large residential or small commercial pools

• Head up to approx. 10 m WS – balanced flow with low energy consumption

• Motor power (P₂): approx. 2.6 kW – efficient and powerful performance

• Self-priming up to 3 m – flexible installation above or below water level

• Corrosion-resistant pump body – glass-fibre reinforced polypropylene (PP-GF30)

• Quiet, low-vibration design – precision-balanced impeller and diffuser

• Integrated strainer basket – approx. 6–8 L capacity for reduced maintenance

• Motor shaft fully isolated from pool water – no metal contact for enhanced safety

• Mechanical seal mounted on plastic shaft protector – reliable and service-friendly

• AK version available – for higher salt content pools (>0.5% or 5 g/l salt)**

⚙️ Technical Specifications

• Model: BADU Resort 60

• Manufacturer: SPECK Pumpen, Germany

• Type: Centrifugal self-priming pool circulation pump

• Power supply: 3~ Y/Δ 400/230 V, 50 Hz

• Motor output (P₂): approx. 2.2 kW

• Maximum flow rate: approx. 60 m³/h

• Head: approx. 10 m WS

• Maximum casing pressure: 2.5 bar

• Maximum water temperature: 60 °C

• Material composition:

  • Pump housing – PP-GF30 (glass-fibre reinforced polypropylene)

  • Diffuser – PP-GF30

  • Impeller – PPE-GF30 / PP-GF30

  • Shaft – stainless steel (AISI 316)

  • Seal – carbon/ceramic/EPDM mechanical seal

• Strainer basket capacity: approx. 6–8 L

• Installation: Dry location, up to 3 m above or below water level

• Water compatibility:

  • Standard version: up to 0.5% salt content (5 g/l)

  • AK version: for higher-salinity water applications

📍 Typical Applications

• Public and commercial swimming pools

• Hotel and spa pool installations

• Large residential pools

• Water parks and aquatic facilities

• Continuous-duty filtration and recirculation systems
