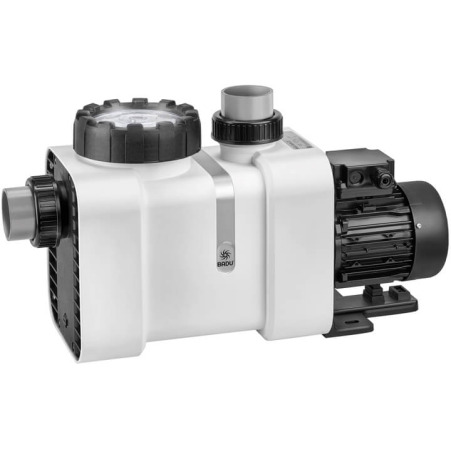

BADU Delta 9 – 1~ 230 V, 50 Hz
Compact and energy-efficient circulation pump engineered for small and medium private swimming pools. The BADU Delta 9 offers reliable hydraulic performance, quiet operation, and optimized energy consumption. Its corrosion-resistant construction, high-quality motor technology, and robust materials ensure a long service life, even in demanding pool environments. The BADU Delta series is designed for easy installation and seamless integration into modern or existing filtration systems.
BluePulse Advanced Swimming Pool Engineering Limited provides full installation, diagnostics, and both warranty and post-warranty service for all BADU circulation pumps.
Contact us at webshop@bluepulse.ie for technical advice and assistance in selecting the ideal BADU pump for your filtration system.
- Symbol: 020203001
- Availability: Available
- Delivery time: up to 14 days
♻️ BADU Delta 9 – Single‑Phase Pool Pump (1~ 230 V, 50 Hz)
The BADU Delta 9 is a high-performance single-phase circulation pump designed for efficient and reliable water circulation in small residential swimming pools and spas.
Its single-phase 230 V motor provides stable operation with easy installation, ensuring consistent water flow for pool filtration, heating, and chemical treatment.
The pump is built with corrosion-resistant materials for both the housing and impeller, offering long-term durability in chlorinated and saltwater pools, and its quiet operation makes it suitable for indoor and outdoor installations.
✅ Key Features
-
Single-phase 230 V motor for easy installation and operation
-
Corrosion-resistant pump housing for long service life
-
High-efficiency impeller for optimal water flow
-
Quiet operation for minimal disturbance
-
Compatible with pool heating and filtration systems
-
Maintenance-friendly design for easy servicing
-
Suitable for chlorinated and saltwater pools
⚙️ Technical Specifications
-
Model: BADU Delta 9
-
Power supply: 1~ 230 V, 50 Hz
-
Motor type: Single-phase induction
-
Flow rate: ~9 m³/h
-
Maximum head: ~6 m water column
-
Impeller: High-efficiency, corrosion-resistant
-
Pump housing: Durable thermoplastic or reinforced composite
-
Connection: Standard pool piping connections
-
Recommended pool volume: Suitable for small residential pools and spas
📍 Typical Applications
-
Small residential swimming pools
-
Private spas and jacuzzis
-
Compact commercial pools
-
Pool circulation for heating and filtration systems
| Color: | White |
|---|---|
| Symbol: | 020203001 |
| Weight | 12.9 kg |
| Tension: | 1~ 230 V |
| Power consumption P₁: | 0.46 kW |
| Power output P₂: | 0.30 kW |
| Funding level (Max): | 12.70 m |
| Recommended suction / discharge line, PVC pipe, d: | 50.00 mm |
